Driveway Culvert Size and Length in Kaufman County
In Kaufman County the driveway culvert size is not your call or the installer's: the precinct Commissioner sets the diameter on your permit. The length follows from how wide the drive is and how the ends are finished. Here is how both get decided, with the numbers worked out.
Who Sets Driveway Culvert Size and Length in Kaufman County
Kaufman County's culvert application (revision 02-2026) is direct about it: once the permit is filed and the fee paid, the precinct Commissioner contacts the property owner and "will determine standard appropriate size and diameter." The Commissioner knows how much water that stretch of road ditch carries in a storm, which a homeowner looking at a dry ditch in August does not.
That matters more here than in most of Texas. Kaufman County sits on Blackland Prairie clay with 60% or more clay content, and wet clay sheds rain instead of soaking it up, so road ditches run fast and full after a storm. A pipe one size too small backs water up over the drive and washes out the fill around it.
For most homes the answer is a 12 in pipe; ditches that drain more ground or sit in a low spot usually get 15 to 18 in. On a state highway (US-80, US-175 or a state FM road) TxDOT approves the size and design instead, under its access management rules.
Driveway Culvert Pipe: The Three Types the County Accepts
Size is only half the spec. The county takes three pipe types in its right-of-way and states that no other materials will be accepted:
| Pipe | County inspection rule | Where it fits |
|---|---|---|
| Corrugated steel (CMP) | Subject to county inspection like all work in the right-of-way | The usual residential driveway pipe in Kaufman County |
| Double-wall HDPE | Precinct staff inspect for final approval; install need not be witnessed | Light, does not rust; needs good bedding in shifting clay |
| Concrete | Set by a professional; precinct staff witness and inspect the install | Large flows and heavy crossings; the costliest per foot |
Smooth PVC, single-wall drain tile and salvaged tanks are out, however cheap they look at the farm store.
How Long a Driveway Culvert Has to Be
The county form asks for three numbers on the sketch: the width of the drive, the culvert length and the length of the safety end caps. The pipe has to pass under the full width of the drive and keep going until the fill on each side has sloped back down to the ditch, where the safety end caps finish it.
The sharper the side slope, the shorter the pipe; the flatter and safer the slope, the longer. TxDOT sets 6:1 or flatter on state highways: for every foot the drive sits above the ditch bottom, the slope runs 6 ft out at each end. The table works that rule through for common drive widths.
| Drive width on top | Pipe length, 2 ft of fill | Pipe length, 3 ft of fill |
|---|---|---|
| 12 ft | about 36 ft | about 48 ft |
| 16 ft | about 40 ft | about 52 ft |
| 20 ft | about 44 ft | about 56 ft |
| 24 ft | about 48 ft | about 60 ft |
Fill = height of the finished drive above the ditch bottom at the pipe. Length = drive width + 6 ft per foot of fill at each end (TxDOT 6:1). County roads follow the end caps your precinct specifies.
Local residential driveway culverts are typically quoted at 20 to 40 ft of pipe, so a long 6:1 run on a state highway sits at or past the top of that range. Whatever the number, it goes on the permit sketch and the precinct can change it.
Drive Width Rules
A wider drive means a longer pipe, so settle the width before you file. On a state highway a private residential driveway can be no wider than 24 ft, plus the corner radii, and those radii have to be at least 15 ft where the drive meets the pavement. On county roads the precinct reviews the width you draw on the sketch along with everything else.
Depth and Bedding on Blackland Clay

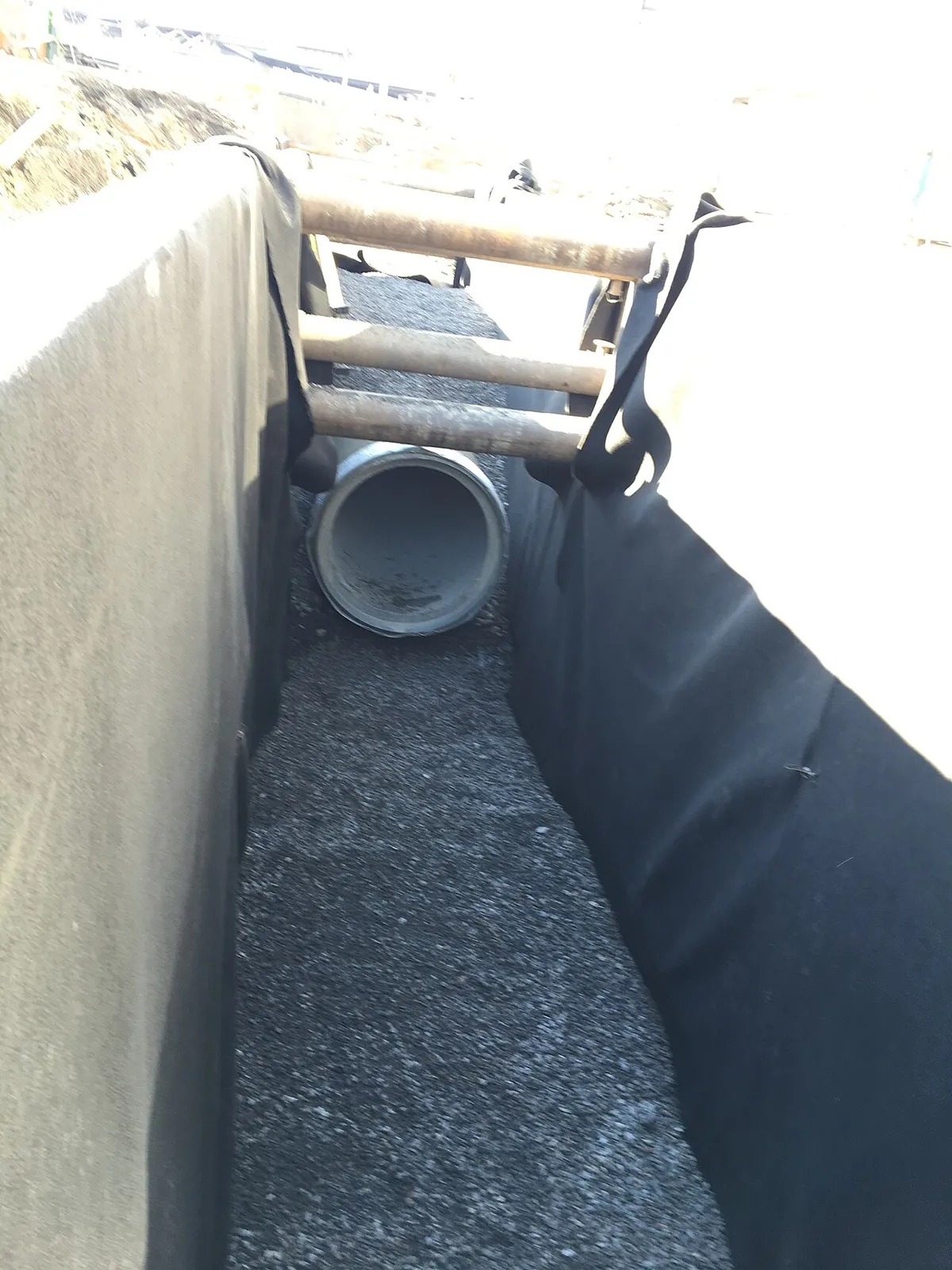

The pipe sits on the ditch flowline so water enters and leaves at the ditch bottom: set it high and water ponds at the inlet, set it low and it silts shut. In Kaufman County clay, which swells when wet and cracks when dry, the pipe goes on a bed of crushed rock rather than straight on the clay, so it holds its grade as the ground moves. The Blackland clay drainage guide explains why.
A 16 ft drive across a county road ditch east of Kaufman
An example, not a job record: a new house on five acres off a county road, with a road ditch about 2 ft deep at the drive. The owner files the culvert application with the survey, deed and notarized consent and marks it residential. The precinct calls back and sets an 18 in pipe, larger than the 12 in the owner expected, because the ditch also carries runoff from a field across the road.
With a 16 ft drive and safety end caps the sketch shows about 30 ft of corrugated steel pipe. At roughly $20 to $60 per foot for corrugated metal pipe (LatestCost, September 2026), the pipe alone is about $600 to $1,800. Installed culvert jobs in Kaufman typically run $892 to $5,981 (HomeYou, August 2026), and the bigger pipe, bedding stone, fill and end caps push this one up from the bottom of that range.
What goes wrong: buying a 12 in pipe before the precinct calls, or building the drive wider than the sketch so the pipe ends sit in the fill.
Ready to build it? Driveway culvert installation covers the dig, bedding and surface; the culvert installation cost page prices each pipe size; the Kaufman County culvert permit page lists everything the application needs.
Driveway Culvert Size: Frequently Asked Questions
What size culvert do I need for my driveway in Kaufman County?
How long should a driveway culvert be?
How wide can my driveway be over the culvert?
Can I use smooth PVC, single-wall plastic or a used tank as a culvert?
Does a Kaufman County driveway culvert need headwalls or end caps?
