Drainage on Blackland Clay in Kaufman County, TX

The Soil Behind Kaufman County's Drainage Challenges

Not all drainage problems are created equal. In sandy East Texas counties, drainage problems come from low elevation and slow runoff. In Kaufman County, drainage problems come from soil that doesn't let water pass through it at all. The Blackland Prairie Vertisol clay that underlies most of Kaufman County has over 60% clay content and an infiltration rate so low that rainfall on a clay surface effectively runs off as if it fell on pavement.

This makes surface drainage design critical. A Kaufman County property that is graded correctly will shed water efficiently to drainage ditches and culverts. One that isn't will pond water until it evaporates or eventually soaks in over days. For driveways, building sites, and rural access roads, poor drainage on clay means standing water, saturated subgrade, and eventual structural failure of whatever sits on top.

What Is Blackland Clay

Blackland Prairie Vertisol clay is the dominant soil type across a wide band of Texas stretching from the Red River in North Texas through Kaufman County and continuing south toward San Antonio. The name comes from the dark color: high organic matter content combined with the dark clay minerals produces a nearly black soil surface when dry, which turns to a deep gray when wet.

The USDA classifies this soil as a Vertisol, a soil order defined by high clay content and extreme shrink-swell behavior. The clay minerals responsible are primarily smectites (specifically montmorillonite), which expand dramatically when they absorb water. A dry smectite clay sample can nearly double in volume when fully wetted. In the field, this means the soil surface moves measurably with every significant rain event and contracts again as it dries.

Kaufman County Vertisol soils are classified by the USDA as having a shrink-swell rating of "very high." The county's Natural Resources Conservation Service (NRCS) soil survey documents this classification for the primary soil series found throughout the county, including the Houston Black and Burleson series that cover much of the rural landscape.

How Clay Soil Moves

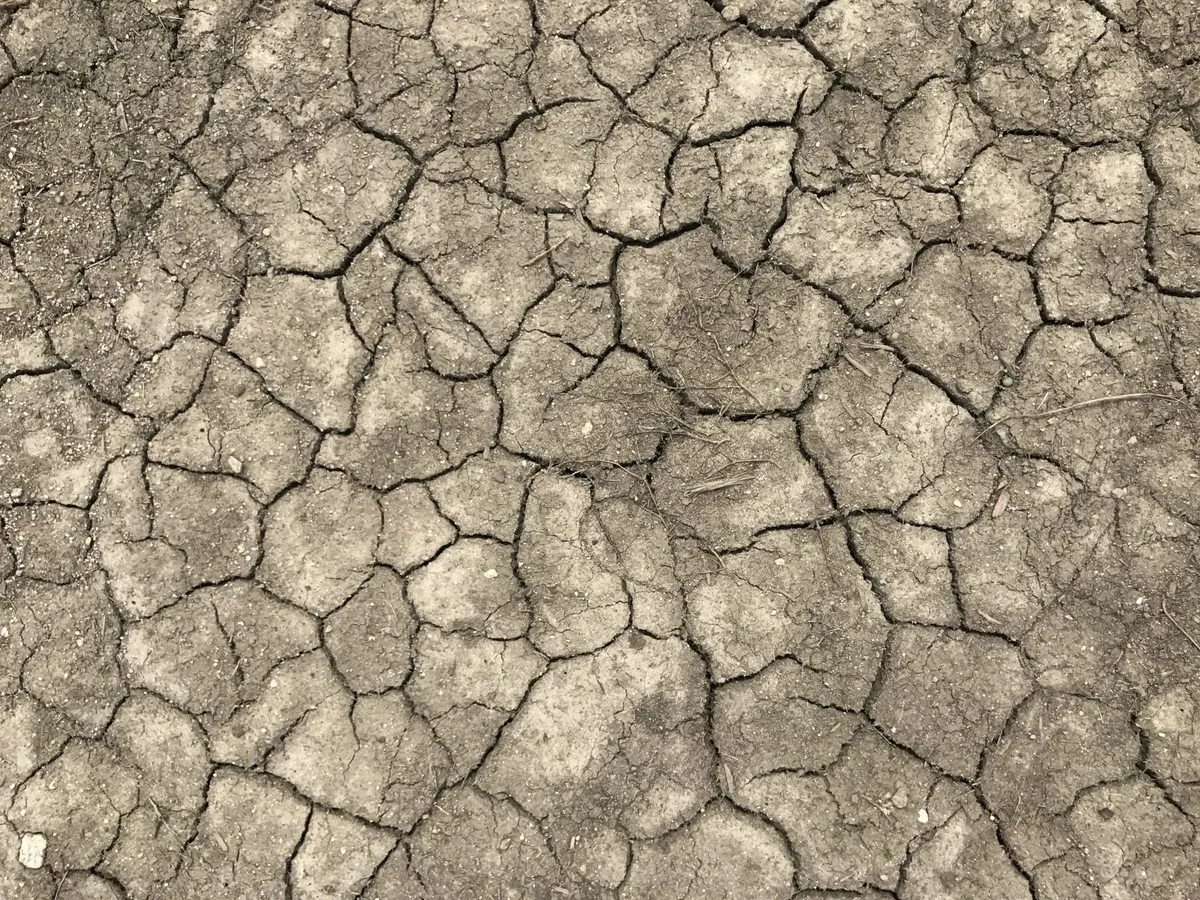

The movement happens vertically and laterally. When dry, Kaufman County clay develops deep shrinkage cracks, sometimes 2-3 inches wide and 12-18 inches deep, that run across the soil surface in irregular polygonal patterns. These cracks are a direct measure of how much the clay has contracted. When rain fills those cracks and the clay rewets from below, it swells back upward and the cracks close.

The net vertical movement between a fully dry and fully wet state is typically 2-3 inches across the county, though it can reach 4-5 inches in the deepest, most active clay areas. This movement is seasonal in Kaufman County: the soil is wettest in late winter and spring after the wet season, and driest in late summer and fall after the long Texas dry period. The peak and trough of soil volume can be 8-12 weeks apart.

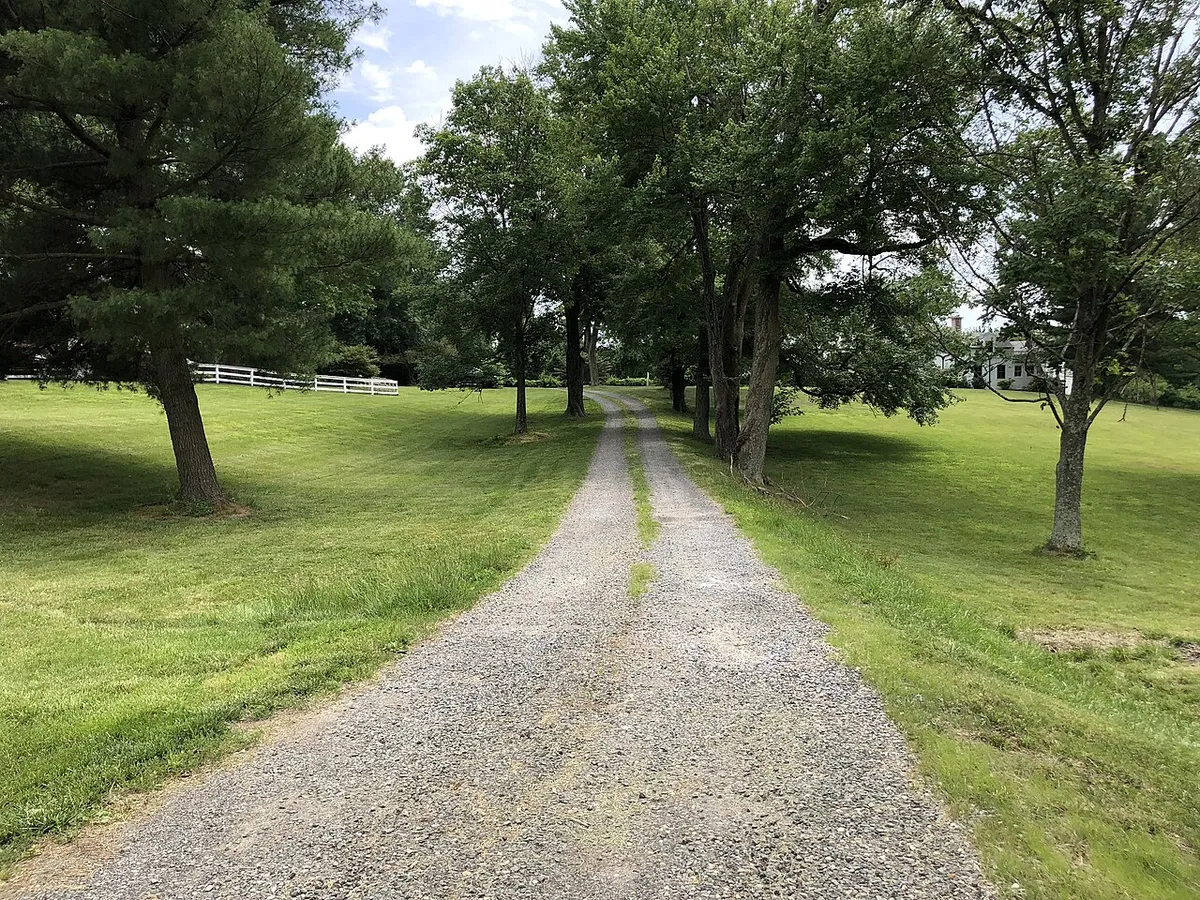

This movement affects any structure in contact with the clay. A building foundation on clay heaves in wet conditions and settles in dry conditions. A culvert bedded in clay shifts with the ground. A gravel driveway on clay heaves in spring and develops ruts as the clay beneath contracts in summer. The only effective response is to create a stable zone between the structure and the active clay, using materials that don't change volume with moisture.

Why Culverts Fail Faster in Clay Soil

A culvert installed without proper bedding in Kaufman County clay experiences every seasonal movement cycle directly. Here is the failure sequence: The clay expands in spring, pushing upward on the pipe and potentially lifting it off grade. The clay contracts in late summer, and the pipe settles back down, but not always to the same position it started in. Over multiple cycles, the pipe drifts from its installed position.

The first damage appears at the joints. Corrugated metal pipe sections connect at the bell end, where one pipe section slides into the slightly larger end of the next. Lateral soil movement during shrink-swell cycles loads these connections in tension. After enough cycles, the joint separates. Separated joints leak: water inside the pipe exits through the joint into the surrounding soil, carrying fine particles with it and creating voids around the pipe. The driveway surface above these voids sinks.

The second failure mode in Kaufman County clay is corrosion from outside the pipe. The clay here contains sulfates in concentrations that accelerate corrosion of uncoated galvanized steel CMP. Corrosion attacks the pipe exterior where it contacts wet clay, thinning the pipe wall from the outside in. This corrosion is invisible from inside the pipe until the wall fails through.

Both failure modes are preventable with proper installation: rock bedding prevents movement-related joint separation, and HDPE pipe eliminates the corrosion risk entirely.

Choosing the Right Pipe for Clay Soil

Two pipe materials are standard for Kaufman County culverts: CMP and HDPE. Each has specific performance characteristics in clay soil.

CMP (corrugated metal pipe) is the Kaufman County standard and what the Commissioner's office typically specifies during the permit process. Standard galvanized CMP is cost-effective and widely available. The weakness in Kaufman County clay is corrosion. Bituminous-coated or aluminized CMP extends service life in high-sulfate environments. If the Commissioner's office specifies CMP for your installation, ask about coated options.

HDPE (high-density polyethylene) is the better material for clay soil on two counts. First, it does not corrode. There is no galvanized coating to fail, no sulfate corrosion mechanism. The pipe material itself is inert in soil contact. Second, HDPE has controlled flexibility: it can deflect slightly under load without joint separation in the way a rigid pipe would crack or a CMP joint would open. This controlled deflection tolerance makes it better suited to the movement environment of Blackland clay. HDPE costs 20-30% more than equivalent CMP but typically outlasts it by 15-25 years in Kaufman County conditions.

Proper Bedding and Installation Depth

Rock bedding is the primary engineering control for culvert performance in Kaufman County clay. The bedding zone serves two purposes: it creates a stable, non-shrinking foundation for the pipe, and it provides a drainage path that prevents water pressure buildup around the pipe exterior.

The minimum bedding specification for Blackland clay is a 4-6 inch layer of crushed limestone or crushed concrete beneath the pipe extending the full pipe length, with crushed material packed along both sides of the pipe up to at least the pipe centerline (springline). Above the springline, clean granular fill or compacted select fill replaces native clay for the first 12 inches above the top of the pipe. This protects the pipe from the zone of greatest clay movement near the surface. Native clay backfill can be used above this zone.

Installation depth matters as well. The minimum cover over the top of the pipe before gravel placement is typically 12 inches. Insufficient cover increases the risk of pipe deflection under vehicle loads. Excessive depth (more than 48 inches for standard residential sizes) increases installation cost without significant performance benefit and may create headwall issues at the ends.

Drainage Design for Clay Lots

Drainage on a Kaufman County clay lot is fundamentally a surface drainage design problem. The soil won't help by absorbing water. Every drop that falls on the property has to go somewhere via surface flow. The design goal is to control where it goes.

The basic principles: grade the land to fall away from structures on all sides, at a minimum of 2-3% slope for the first 10 feet away from any building or driveway edge. Direct that flow to swales or ditches that carry it toward the county road drainage system. Ensure the county road drainage ditch can accept the flow through an adequately sized culvert.

On larger properties, drainage design may involve berms, swales, and culverts at multiple points to manage flow from higher ground before it reaches the driveway or building site. Properties along drainage divides in Kaufman County can receive significant off-site flow from neighboring agricultural land during heavy rain events. That off-site flow has to be routed around or through the property using appropriate structures.
